vRealize Operations Manager: Troubleshooting Cloud Proxy and Telegraf agents.

Cloud Proxy is a required component in vRealize Operations Manager if you use Telegraf agents to monitor operating systems or applications. However, I can see that many people don’t know what to do if their Cloud Proxies or Telegraf agents do not work correctly. That post describes basic commands, files location, etc., to help you solve the problems with Cloud Proxy and/or Telegraf agents.

Check Cloud Proxy to vROPS connectivity and/or upgrade status:

Open an SSH session to Cloud Proxy. Log in on the root account and type the command:

cprc-cli -s

The output should be similar to that:

root@vrops-proxy [ ~ ]# cprc-cli -s
-----------------------------------------------------------------------
 CPRC deployment and connection configurations
-----------------------------------------------------------------------
    Name: vrops-proxy.blanketvm.com
    Version: 8 6.2.19081813
    IP: 10.20.40.54
    Deployed: 1/4/2022
    Connected to vRops cloud: 1/1/2022
    NTP server(s): [['ntp.blanketvm.com']]
-----------------------------------------------------------------------
 Proxy Server Configurations
-----------------------------------------------------------------------
    Proxy Server IP: []
    Proxy Server Port: []
    Proxy Server User: []
    SSL Enabled: []
    SSL Verification Enabled: []
-----------------------------------------------------------------------
 Load Balancer Configurations
-----------------------------------------------------------------------
    Load Balancer IP: []
-----------------------------------------------------------------------
 Health checking
-----------------------------------------------------------------------
    Ping to vROps cloud at: [2022-01-04 11:55:18.439] status: [SUCCESS]
    Last success ping at: [2022-01-04 11:55:18.439]
-----------------------------------------------------------------------
 Product Upgrade
-----------------------------------------------------------------------
    Automated upgrade enabled: [True]
    Status: [NONE]
    Product PAK: []
    Started: []
    Download status: [NONE]
    Download start: []
    Downloaded PAK size: [] MB
    Download end: []
-----------------------------------------------------------------------
 Product Latest Upgrade
-----------------------------------------------------------------------
    Product PAK: [vRealize-Operations-Cloud-Proxy-86219081813]
    Status: [SUCCESS]
    Type: [AUTOMATED]
    Started: [2022-01-03 11:07:12.352]
    Completed: [2022-01-03 11:11:37]
    Extract status: [SUCCESS]
    Download status: [SUCCESS]
    Upgrade system reboot at: [2022-01-03 11:11:37]

Cloud Proxy log files location:

Logs directory: /storage/log/vcops/log
The most important log files:
– Casa log: /storage/log/vcops/log/casa/casa.log
– Collector log: /storage/log/vcops/log/collector.log

Changing network settings on Cloud Proxy:

Run the command:

/opt/vmware/share/vami/vami_config_net

The output should be similar to that:


Main Menu
0)      Show Current Configuration (scroll with Shift-PgUp/PgDown)
1)      Exit this program
2)      Default Gateway
3)      Hostname
4)      DNS
5)      Proxy Server
6)      IP Address Allocation for eth0
Enter a menu number [0]:

https://kb.vmware.com/s/article/2115840

How to manually upgrade a vRealize Operations Cloud Proxy node via CLI:

https://kb.vmware.com/s/article/80590

Check connectivity from Telegraf agent to Cloud Proxy:

Verify if the control plane is working:

root@vrops-proxy [ ~ ]# docker ps
CONTAINER ID        IMAGE                                                                        COMMAND                  CREATED             STATUS              PORTS                                                      NAMES
a9e4c125d7a6        ucp-docker-local.artifactory.eng.vmware.com/salt-master-bootstrap:8.6.0.96   "/bin/sh -c '/tmp/sa…"   25 hours ago        Up 4 hours          0.0.0.0:4505-4506->4505-4506/tcp, 0.0.0.0:8553->8553/tcp   ucp-controlplane-saltmaster

If the control plane is not working, run the command:

docker restart ucp-controlplane-saltmaster

If the control plane is working fine, connect to the container and verify Telegraf agent connectivity:

root@vrops-proxy [ ~ ]# docker exec -it ucp-controlplane-saltmaster bash
root [ / ]# salt '*' test.ping
e02a74f3-9cb7-3dab-b61c-29dea61a1230_vm-4025:
    True
e02a74f1-9cb7-3dab-b61c-29dea61a1230_vm-4024:
    True
e02a74f4-9cb7-4dab-b61c-29dea61a1230_vm-165025:
    Minion did not return. [Not connected]
e02a74f4-9cb7-4dab-b61c-29dea61a1230_vm-165026:
    Minion did not return. [Not connected]
e02a74f4-9cb7-4dab-b61c-29dea61a1230_vm-109023:
    Minion did not return. [Not connected]
ERROR: Minions returned with non-zero exit code

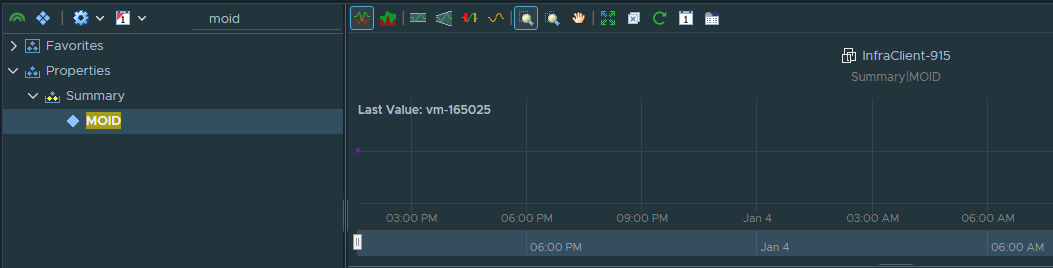

Here we can see that some agents are not reachable. Unfortunately, we do not have virtual machine names, but to decode that number, we can use the vROPS! If you check Properties->Summary-MOID on VM, you will see that ID. You can create a View in vROPS that contains VM names and MOID and check that quickly.

vROPS-CP-T-Troubleshooting-1

Check Telegraf agent services:

Let’s keep focus on vm-165025 (InfraClient-915). As you can see, the agent is not connected to the control plane. Check services on the client virtual machine (Ubuntu OS in my example):

root@InfraClient-915:~# service ucp-minion status
● ucp-minion.service - VMware Application Remote Collector Minion
     Loaded: loaded (/lib/systemd/system/ucp-minion.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2022-01-04 09:11:32 CET; 4h 40min ago
   Main PID: 810 (python)
      Tasks: 2 (limit: 1070)
     Memory: 42.0M
     CGroup: /system.slice/ucp-minion.service
             └─810 /opt/vmware/ucp/dist/python/bin/python /opt/vmware/ucp/ucp-minion/bin/ucp-minion --config=/opt/vmware/ucp/salt-minion/etc/salt/grains
...
root@InfraClient-915:~# service ucp-telegraf status
● ucp-telegraf.service - The plugin-driven server agent for reporting metrics into InfluxDB
     Loaded: loaded (/lib/systemd/system/ucp-telegraf.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2022-01-04 09:16:36 CET; 4h 35min ago
       Docs: https://github.com/influxdata/telegraf
   Main PID: 1355 (telegraf)
      Tasks: 8 (limit: 1070)
     Memory: 32.1M
     CGroup: /system.slice/ucp-telegraf.service
             └─1355 /opt/vmware/ucp/ucp-telegraf/usr/bin/telegraf -config /opt/vmware/ucp/ucp-telegraf/etc/telegraf/telegraf.conf -config-directory /opt/vmware/ucp/ucp-telegraf/etc/telegra>
...skipping...
● ucp-telegraf.service - The plugin-driven server agent for reporting metrics into InfluxDB
     Loaded: loaded (/lib/systemd/system/ucp-telegraf.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2022-01-04 09:16:36 CET; 4h 35min ago
       Docs: https://github.com/influxdata/telegraf
   Main PID: 1355 (telegraf)
      Tasks: 8 (limit: 1070)
     Memory: 32.1M
     CGroup: /system.slice/ucp-telegraf.service
             └─1355 /opt/vmware/ucp/ucp-telegraf/usr/bin/telegraf -config /opt/vmware/ucp/ucp-telegraf/etc/telegraf/telegraf.conf -config-directory /opt/vmware/ucp/ucp-telegraf/etc/telegra>
...
root@InfraClient-915:~# service ucp-salt-minion status
● ucp-salt-minion.service - Salt-Minion in a VirtualEnv
     Loaded: loaded (/lib/systemd/system/ucp-salt-minion.service; disabled; vendor preset: enabled)
     Active: inactive (dead)

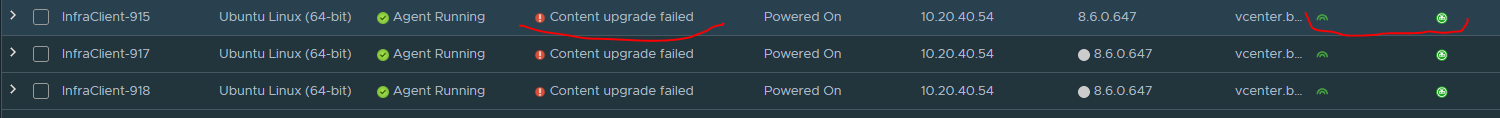

We can see that the ucp-salt-minion service is not working. The most common effect of that situation (ucp-minion and ucp-telegraf are working, ucp-salt-minion not) is that we can see all agent metrics in vROPS, but we cannot manage agents. For example, upgrade them.

vROPS-CP-T-Troubleshooting-2

Start ucp-salt-minion service and verify connectivity:

root@InfraClient-915:~# service ucp-salt-minion start
root@InfraClient-915:~# service ucp-salt-minion status
● ucp-salt-minion.service - Salt-Minion in a VirtualEnv
     Loaded: loaded (/lib/systemd/system/ucp-salt-minion.service; disabled; vendor preset: enabled)
     Active: active (running) since Tue 2022-01-04 14:04:38 CET; 10s ago
    Process: 10586 ExecStart=/etc/init.d/ucp-salt-minion start (code=exited, status=0/SUCCESS)
      Tasks: 3 (limit: 1070)
     Memory: 61.0M
     CGroup: /system.slice/ucp-salt-minion.service
             └─10613 /opt/vmware/ucp/salt-minion/bin/python /opt/vmware/ucp/salt-minion/bin/salt-minion -c /opt/vmware/ucp/salt-minion/etc/salt -d
--------------------------------------------------------------------------------------------------------------------------------------------------
root@vrops-proxy [ ~ ]# docker exec -it ucp-controlplane-saltmaster bash
root [ / ]# salt '*' ping
e02a74f3-9cb7-3dab-b61c-29dea61a1230_vm-4025:
    True
e02a74f1-9cb7-3dab-b61c-29dea61a1230_vm-4024:
    True
e02a74f4-9cb7-4dab-b61c-29dea61a1230_vm-165025:
    True

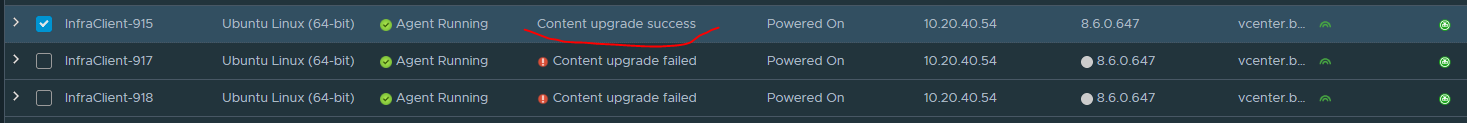

vROPS-CP-T-Troubleshooting-3

More useful things:

Telegraf agent files can be found (default):
– Windows: C:\VMware\UCP
– Linux: /opt/vmware/ucp

Configuration files (grains and minions):
– Windows: C:\VMware\UCP\salt\conf\grains
– Windows: C:\VMware\UCP\salt\conf\minions
– Linux: /opt/vmware/ucp/salt-minion/etc/salt/grains
– Linux: /opt/vmware/ucp/salt-minion/etc/salt/minions

Example files:

root@InfraClient-915:/opt/vmware/ucp/salt-minion/etc/salt# cat grains
add_agent_run_user_and_group: true
add_sudo_perms_for_agent_run_user: true
added_agent_run_user_and_group: true
added_sudo_perms_for_agent_run_user: true
arc_fqdn: vrops-proxy.blanketvm.com
ca_file: ca.pem
cert_file: cert.pem
certs_dir: /opt/vmware/ucp/certkeys
compatibility_error_msg: Recommended version(s) for Ubuntu Linux (64-bit):17.x,18.x.
configured_plugins_collection_interval_secs: 300
connections_discovery_collection_interval_secs: -1
discovery_collection_interval_secs: 300
dl_url: https://vrops-proxy.blanketvm.com:443/downloads/salt
emqtt_https_server_publish_path: /mqtt/publish
emqtt_https_server_url: https://vrops-proxy.blanketvm.com:8884
emqtt_server: vrops-proxy.blanketvm.com:8883
https_metric_publish_path: https://vrops-proxy.blanketvm.com/arc/metric
https_opr_publish_path: https://vrops-proxy.blanketvm.com/arc/control
https_server_url: https://vrops-proxy.blanketvm.com
ip_discovery_collection_interval_secs: -1
job: install
key_file: key.pem
max.bootstrap.time.seconds: 600
max_message_size_in_kb: 60
mep_status_collection_interval_secs: 300
monitor_agents_interval_secs: 300
monitoring_agent_collection_interval: 300s
mqtt_conn_type: persistent
os_type: Unix
prerequisite_check_ports: 443,4505,4506
prerequisite_check_unix_commands: /bin/bash,sudo,tar,awk,curl,chmod,chown,cat,useradd,groupadd,userdel,groupdel
process_discovery_collection_interval_secs: -1
remotedir: /tmp/vmware-root_888-2730562489/VMware-UCP_Bootstrap_Scriptsvmware60
salt_master_fqdn: vrops-proxy.blanketvm.com
salt_minion_dir: /opt/vmware/ucp/salt-minion
salt_minion_sha256: 5e764e0acca3bfac161f3cf893bfda17b54d8fc52f32faefe907bac56bb63446
ucp_minion_cmd: /opt/vmware/ucp/ucp-minion/bin/ucp-minion.sh --config=/opt/vmware/ucp/salt-minion/etc/salt/grains
ucp_minion_log_path: /opt/vmware/ucp/ucp-minion/var/log/ucp-minion.log
ucp_uaf_agent_run_group: arcgroup
ucp_uaf_agent_run_user: arcuser
ucp_uaf_agents_registry_path: /opt/vmware/ucp/uaf/agents-registry.json
ucp_uaf_configured_plugins_dir: /opt/vmware/ucp/plugins
ucp_uaf_configured_plugins_json_path: /opt/vmware/ucp/plugins/telegraf
ucp_uaf_install_dir: /opt/vmware/ucp
ucp_uaf_install_dir_for_telegraf_conf: /opt/vmware/ucp
ucp_uaf_registry_dir: /opt/vmware/ucp/uaf
ucp_uaf_sd_svc_signatures_path: /opt/vmware/ucp/uaf/sd-svc-signatures.yaml
ucp_uaf_telegraf_conf_path: /opt/vmware/ucp/ucp-telegraf/etc/telegraf/telegraf.conf
ucp_uaf_telegraf_plugin_error_log: /opt/vmware/ucp/ucp-telegraf/var/log/PluginErrorDetails.log
vm_id: vm-165025
vm_name: InfraClient-915
vm_status_lock: null
----------------------------------------------------------------------------------------------------------------
root@InfraClient-915:/opt/vmware/ucp/salt-minion/etc/salt# cat minion
master: vrops-proxy.blanketvm.com
id: e02a74f4-9cb7-4dab-b61c-29dea61a1230_vm-165025

# The root directory prepended to these options: pki_dir, cachedir,
# sock_dir, log_file, autosign_file, autoreject_file, extension_modules,
# key_logfile, pidfile:
root_dir: /opt/vmware/ucp/salt-minion

# in seconds
random_reauth_delay: 180
# in milliseconds
recon_default: 10000
# in milliseconds
recon_max: 170000
# The user to run salt.
user: arcuser

# The user to run salt remote execution commands as via sudo. If this option is
# enabled then sudo will be used to change the active user executing the remote
# command. If enabled the user will need to be allowed access via the sudoers
# file for the user that the salt minion is configured to run as. The most
# common option would be to use the root user. If this option is set the user
# option should also be set to a non-root user. If migrating from a root minion
# to a non root minion the minion cache should be cleared and the minion pki
# directory will need to be changed to the ownership of the new user.
#sudo_user: {UCP_AGENT_RUN_USER}
####BEGIN For Customized Configs####
multiprocessing: False
####END For Customized Configs####

Summary

Stay tuned!

4 thoughts on “vRealize Operations Manager: Troubleshooting Cloud Proxy and Telegraf agents.

  1. Hi Pawel,

    Great post! Very informative.

    I have a issue with one some VMs that fails to install the Telegraf agent, the error is “connect to salt master”.

    Any ideas on what this error may be? I tried looking through the Telegraf agent logs on the server but cannot find anything relevant to the error. I am using vRealize Operations 8.6.2

    Like

    1. Did you check network connectivity between Client and Cloud Proxy?
      You need to have these ports opened: 443, 4505, and 4506. Confirm that using telnet, nc, curl, or something like that.

      Your Cloud Proxy also need communication with vCenter and ESXi. Take a look on that schemas:
      https://docs.vmware.com/en/vRealize-Operations/8.6/com.vmware.vcom.core.doc/GUID-85EC81E1-A40B-4FA3-A105-24A2137D1870.html

      Additionally, search for file uaf_bootstrap.log on the client machine. There should be something helpful.

      Like
